Customized solutions for
handling and automation

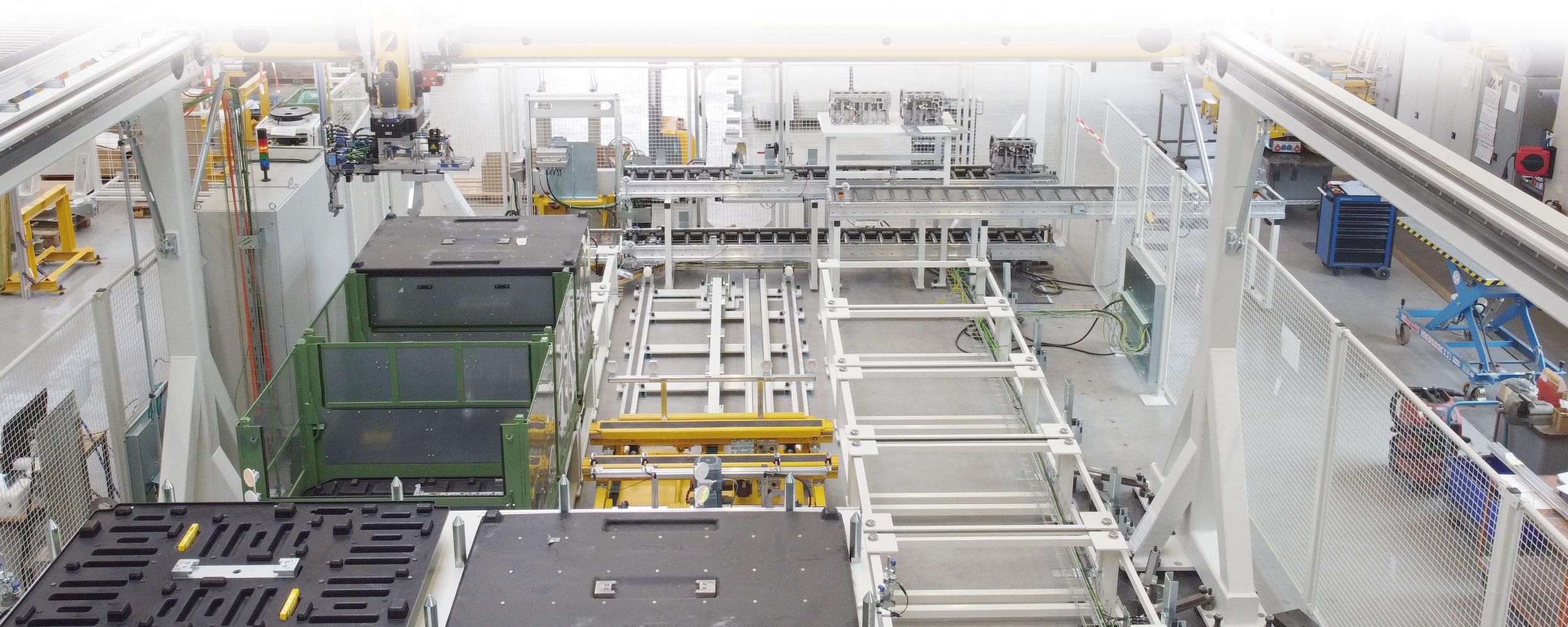

BLEICHERT® Gantry Systems

Cost reduction through durable, virtually maintenance-free modules. BLEICHERT® gantry systems are characterized above all by modern control concepts, the highest quality materials and the design of all components for long-term use. Systems with axis dimensions of over 70,000 mm are already in use, some in three-shift operation, many of them at internationally active companies.

Other important features are:

  • All travel axles in robust steel construction
  • Hardened and ground running rails
  • Straight or helical toothed hardened racks
  • Maintenance-free guidance with single rollers and flat rails
  • Noise emission max. 75 dB (A)
  • Energy-saving functions
  • Safety technology of the travel axes up to category 4

WEB-Configurator

Configure your product easily and smartly directly with the product configurator

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

  • Simple login
  • Configure customised products
  • With provision of the complete CAD data
  • Optimum integration into your existing system
  • Send your product enquiry today
  • Without annoying telephone enquiries

Facts and Figures

BLEICHERT® Portal systems – area portal



TYP PR20 PR40
Ultimate Load* 125 kg 350 kg
Speed*
X-Achse v=3 m/s v=3 m/s
Y-Achse v=4 m/s v=3 m/s
Z-Achse v=2 m/s v=3 m/s
Acceleration*
X-Achse a=3 m/s² a=2 m/s²
Y-Achse a=4 m/s² a=3 m/s²
Z-Achse a=3.5 m/s² a=3 m/s²

* Combination of maximum values possible

BLEICHERT® Portal systems – line portal

TYP PR20 PR40
Ultimate Load* 125 kg 350 kg
Speed*
X-Achse v=3 m/s v=3 m/s
Y-Achse v=4 m/s v=3 m/s
Z-Achse – –
Acceleration*
X-Achse a=3 m/s² a=2 m/s²
Y-Achse a=4 m/s² a=3 m/s²
Z-Achse – –

* Combination of maximum values possible

  • Available in seven different sizes
  • Heavy-duty, durable construction
  • Easy to assemble and maintain
  • Ideal even for difficult tasks in the production of machined parts

Application examples of BLEICHERT® gantry systems:

PR 20 vehicle crankshaft and camshaft, brake disks, cylinder heads
PR 40 truck camshafts and crankshafts, vehicle cylinder heads and crankcases
PR 60 truck cylinder heads, bearings for railway axles
PR 80 truck crankcases, wheel hubs for construction machinery
PR 100 railway wheels and axles, truck crankcases
PR 500 construction equipped

  • Cameras for detecting the position of the workpieces
  • Data matrix read/write systems
  • Workpiece blowing-off units, deburring units, test drawers
  • Workpiece storage, with and without pallets
  • Oil drip pans with flushing
  • Adaptation of machine tools for automatic loading/unloading
  • Warehouse management and process control systems, BDE terminals
  • CE labelling procedure for the entire facility (incl. processing machines)
  • Parts tracking, condition monitoring
  • Own gripper construction design for payloads above 200 kg
  • Telescoping z-axes, maintenance protection for z-axes
  • Temperature compensation
  • Safety encoders on all axes for separation of human /machine areas
