Transporting and buffering of
workpieces on pallets

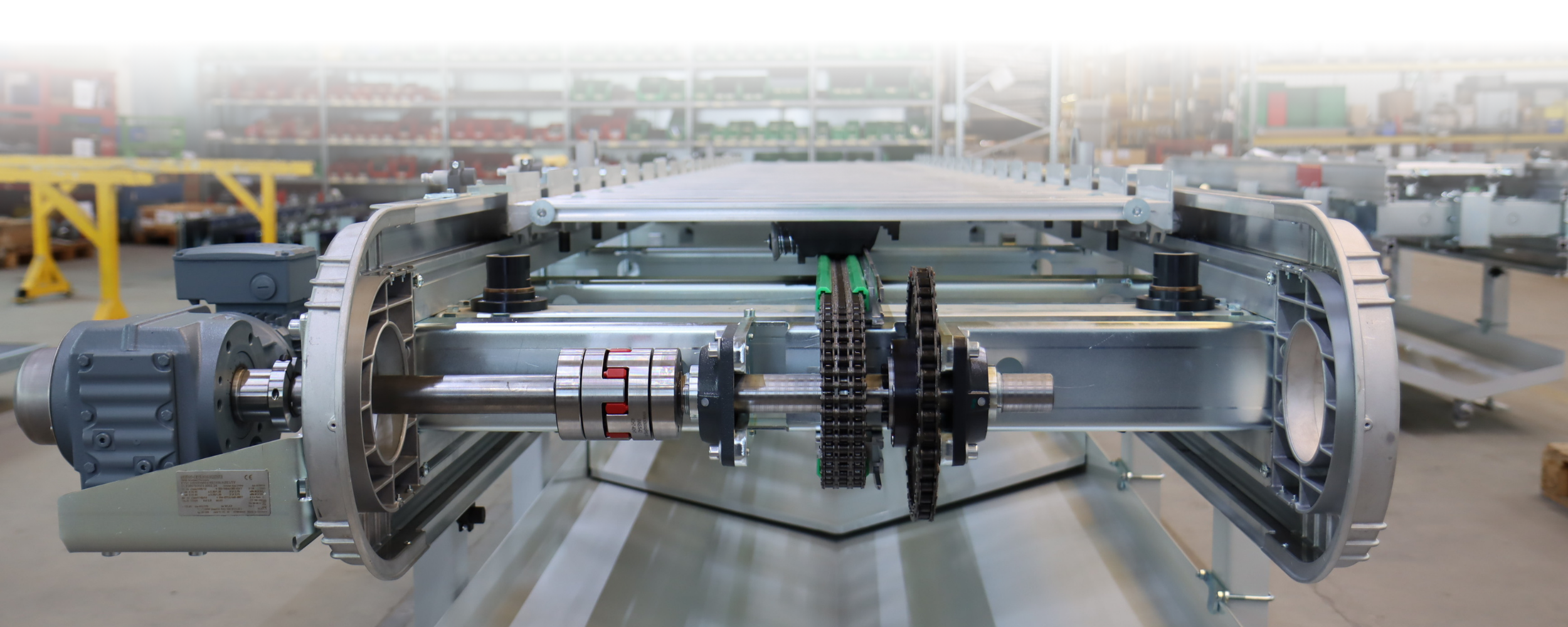

montaflex® 3G – the highly flexible accumulating pallet conveyor system.

Optimize your manufacturing process!

The modular design of the montaflex® 3G offers customized solutions for any size of business and any industry.

  • Only one drive motor required for transporting workpieces up to 20 m.
  • From 20 m, any length can be realized using coupled conveyors.
  • Pallets can be linked to form pallet trains for transporting large and heavy workpieces.
  • The length, width and number of pallets can be configured individually.
  • Constant propulsion through the use of friction or magnetic clutches.

WEB-Configurator

Configure your product easily and smartly directly with the product configurator

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

  • Simple login
  • Configure customised products
  • With provision of the complete CAD data
  • Optimum integration into your existing system
  • Send your product enquiry today
  • Without annoying telephone enquiries

montaflex® 3G – Standard

Center distance [AA]

2500 … 40000 mm in 250 mm paces

Conveyor width [B]

600 mm
1000 mm

Column width [B1]

Symmetrical in 100 mm paces (min. B+60 mm)​
Asymmetrical in 50 mm paces (min. B+60 mm) Steel construction only


Pallet spacing [L]

275 … 1825 mm in 25 mm paces

Panel loading​​

max. 50 kg per pallet incl. workpiece holder

Component mounting​

max.

max. 30 kg

Pallet sizes​​

600 (488) mm x 238 mm
1000 (888) mm x 238 mm

Holding accuracy of the pallet

±0,3 mm (with centering ±0,1 mm)

Conveying speed​

0,1m/s (6 m/min)
0,15 m/s (9 m/min)

Locking drive​

24 V, 400 V, pneumatic

Propulsion element ​​

Friction clutch, magnetic clutch

montaflex® 3G – 45° / 60° / 90°

Center distance [AA]

2500 … 40000 mm in 250 mm paces

Conveyor width [B]

1000 mm

Inclination angle [W]

45° / 60° / 90°

Pallet spacing [L]

275 … 1825 mm in 25 mm paces

Panel loading​

max. 50 kg per pallet incl. workpiece holder

Component mounting​​

max. 30 kg

Pallet sizes​​

1000 (888) mm x 238 mm

Holding accuracy of the pallet

±0,3 mm (with centering ±0,1 mm)

Conveying speed​

0,1m/s (6 m/min)
0,15 m/s (9 m/min)

Locking drive

24 V, 400 V, pneumatic

Propulsion element​​

Friction clutch, magnetic clutch​

45° / 60° /90° montaflex® 3G​​

  • Increased storage volume by buffering the pallets on both sides.
  • Enables ergonomic loading/unloading for the worker on both sides.
  • Components can be transported on workpiece holders in a horizontal or upright position.
  • Front and side loading/unloading possible.
  • Separators and stopping points can be arranged as required.
  • Overall concept consisting of BLEICHERT standard conveyor montaflex® 3G and associated safety elements for personal protection.​

montaflex® 3G-Link your processes

Workstations and stations can also be connected over long distances by linking individual conveyors.

Overall concept consisting of BLEICHERT® standard conveyors montaflex® 3G and patented steel construction system.

Layout options using:

  • coupled conveyors
  • Transfer carriages
  • lifting units
  • rotary units
  • storage modules

A head start through technical innovation!

BLEICHERT montaflex® 3G accumulating conveyors can be integrated very flexibly into a wide variety of hall layouts. Workstations and stations can also be connected over long distances by linking individual conveyors. Overall concept consisting of BLEICHERT montaflex® 3G standard conveyors and patented steel construction system.

Rotary tower storage for storing components on several levels

The parts are provided to the robot for loading/unloading by means of a rotary drive.

The storage unit can also be designed as a cooling storage unit.

Inclined lift for levelling different height levels with offset.

Transport of components on workpiece holders in horizontal or vertical position as well as pallet hoists can be realised.

Customised layout options using:

  • coupled conveyors
  • Transfer carriages
  • lifting units
  • turning units
  • storage modules
